2004+ Chevrolet Gen III IV LS Cylinder Head Bolt Kit

SKU XP981
Original price $87.91 - Original price $87.91
Original price
$87.91
$87.91 - $87.91
Current price $87.91
Availability:
In stock
Vehicle Fitments

Please note - primary head bolts must all have the same length. There is a Mid-Year split on the head bolts, if you have 2 different size head bolts this kit is NOT for YOU.

DO NOT PURCHASE until you have verified the primary head bolt length.

Chevrolet Gen III-IV/LS Series small block (2004 & later) w/ all same length hex bolts
(2004-2014 Chevrolet LS1, LS2, LS3, LS6 (4.8L, 5.3L, 5.7L, 6.0L, 6.2L)

Please note, when installing our product, the final torque for the 11mm bolts are 80 ft-lbs and NOT 85 ft-lbs as incorrectly noted on our manual

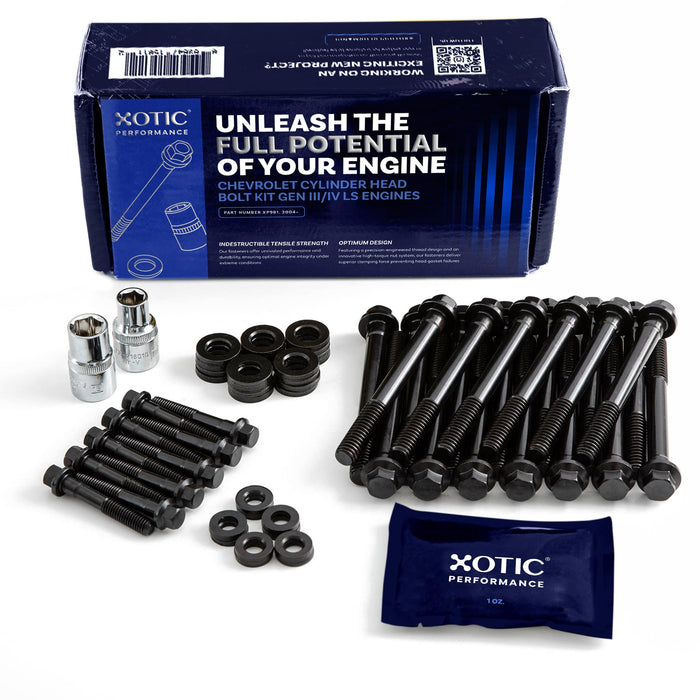

Package Contents

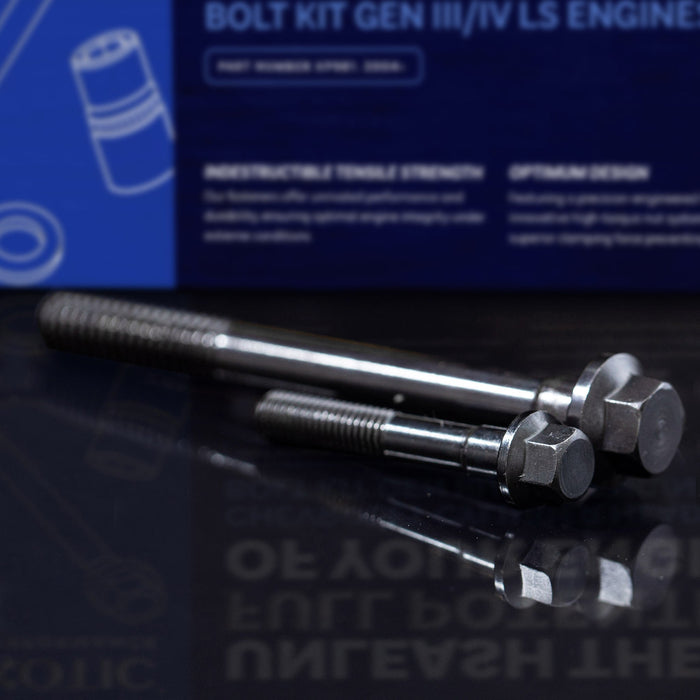

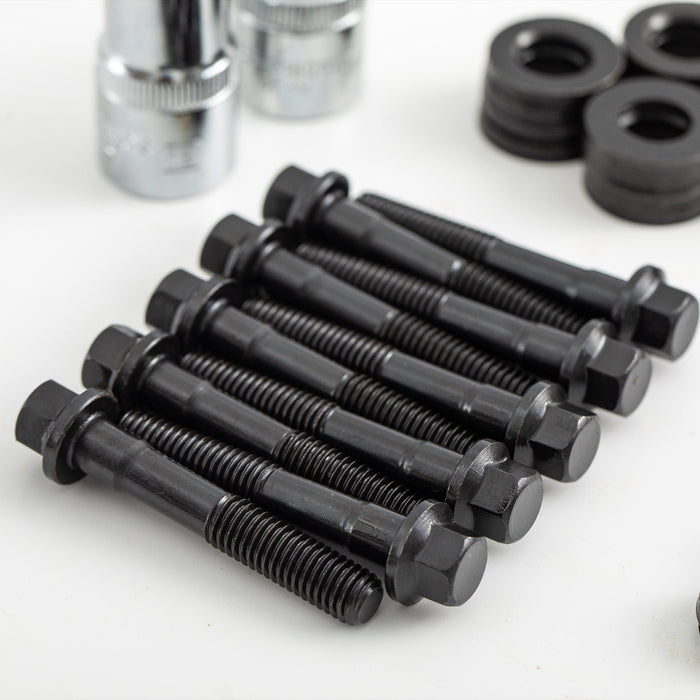

  • 30x Head Bolts (M11 x 113.7mm, M8 x 57mm)

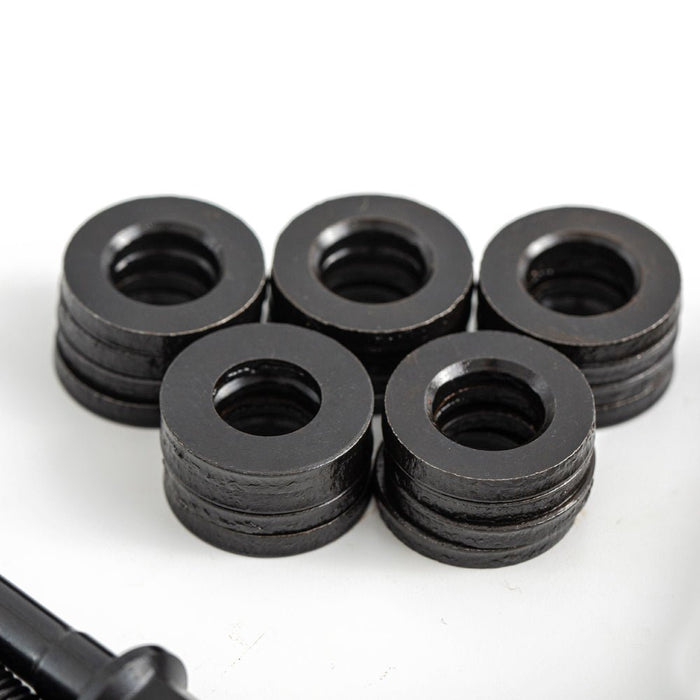

  • 30x Hardened Parallel Washers 0.44" ID, 0.88" OD, 0.120" Thk (Part # W0703)
  • 0.313" ID, 0.675" OD, 0.120" Thickness (Part # W0202)

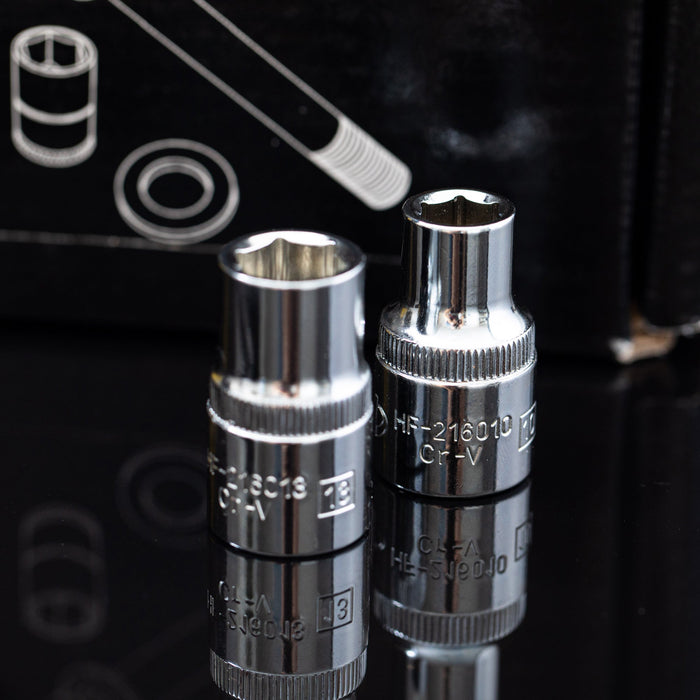

  • 2x Sockets (10mm and 13mm)
  • 1 x Fastener Assembly Lubricant
  • 1 x Instruction Manual
ULTRA STRENGTH

In comparison to standard bolts, our alloy's material characteristics enable much higher tensile strength. For the best fatigue strength, threads are rolled after thermal treatment. A high-quality coating can improve corrosion resistance, reduce friction, and improve overall performance.

EASY INSTALLATION
Installation manual is included with drawn diagrams to ease the installation process. Our head bolts are designed to retain cylinder seal even with today's extremely high-pressure turbo systems.
PREMIUM QUALITY
Black oxide finish protects from wear and tear. Hardened parallel washers allow for uniform load distribution and accurate torque readings.

⚠️ Prop 65 WARNING

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov.

  • 30-day-hassle-free returns-truck

    Free domestic Shipping

    On all orders. Overnight shipping option available at checkout.

  • Lifetime-Warranty-shield

    lifetime warranty

    If any of our products fail due to a manufacturing defect, we will replace them free of charge.

  • Perfect-fit-guaranteed

    perfect fit, guaranteed

    If the product doesn’t match your engine, we will replace it with no extra charge.
