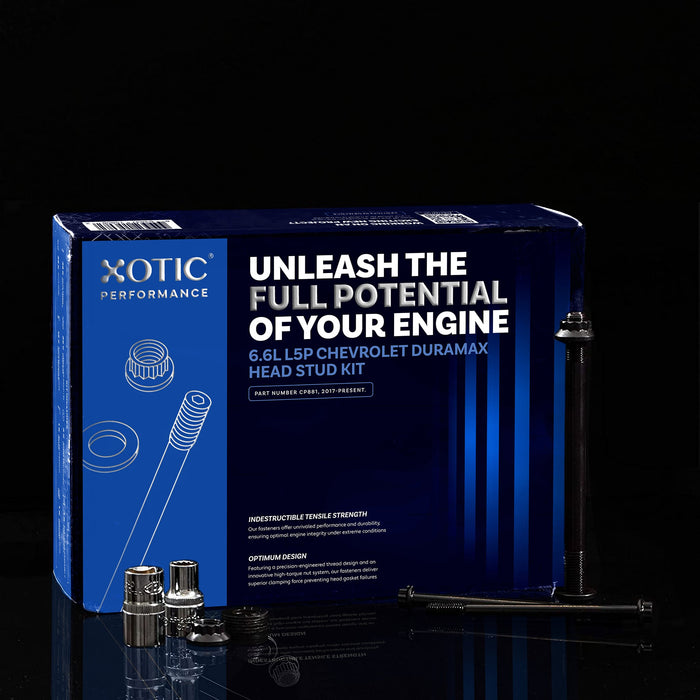

Head Stud Kit 2017 - 2025 For 6.6L L5P Chevrolet GMC Duramax CP881

Head Stud Kit

6.6L L5P Chevrolet / GMC Duramax

2017–2025 L5P Duramax applications

PART # CP881

$399.17 - $399.17
$399.17
$399.17 - $399.17
$399.17
Availability:
in stock, ready to be shipped
Free shipping is available on orders over $100 shipping to the USA or Canada.

Why drivers choose XOTIC PERFORMANCE

Seal the Power. Drive with Confidence.

Your truck deserves strength you can count on. Designed for street-driven and moderately modified builds, this kit supports dependable sealing for daily driving, towing, and light performance upgrades.

Everyday confidence

Designed to help maintain cylinder-head clamping and support reliable gasket sealing through everyday driving and moderate upgrades.

All-in-one hardware

Studs, washers, and nuts supplied together, plus the tools and assembly lubricant included with this kit.

Limited Lifetime Warranty

Backed by XOTIC PERFORMANCE for total peace of mind.

Your application

The right fit comes first.

Browse the compatible applications below, or check your exact vehicle before adding this product to your cart.

Check my vehicle

Engine swap or a custom setup? Confirm your application with our team. Ask XOTIC

Head Stud Kit 2017-2025 For 6.6L L5P Chevrolet GMC Duramax

Inside the box

Know exactly what arrives.

Included components for this product.

QtyComponent
36 Head studs (M12 × 157 mm)
36 M12 nuts (N0701 & N0702)
36 Hardened parallel washers (W0301)
12 Rocker arm bolts (M8 × 122.5 mm)
1 Socket (10 mm)
1 Socket (16 mm)
1 Allen wrench (5 mm)
1 Fastener assembly lubricant

Engineering details

Small details. A critical job.

Head studs help hold the cylinder head and gasket against the block. The hardware, surface preparation, lubrication, and tightening procedure all contribute to the finished assembly.

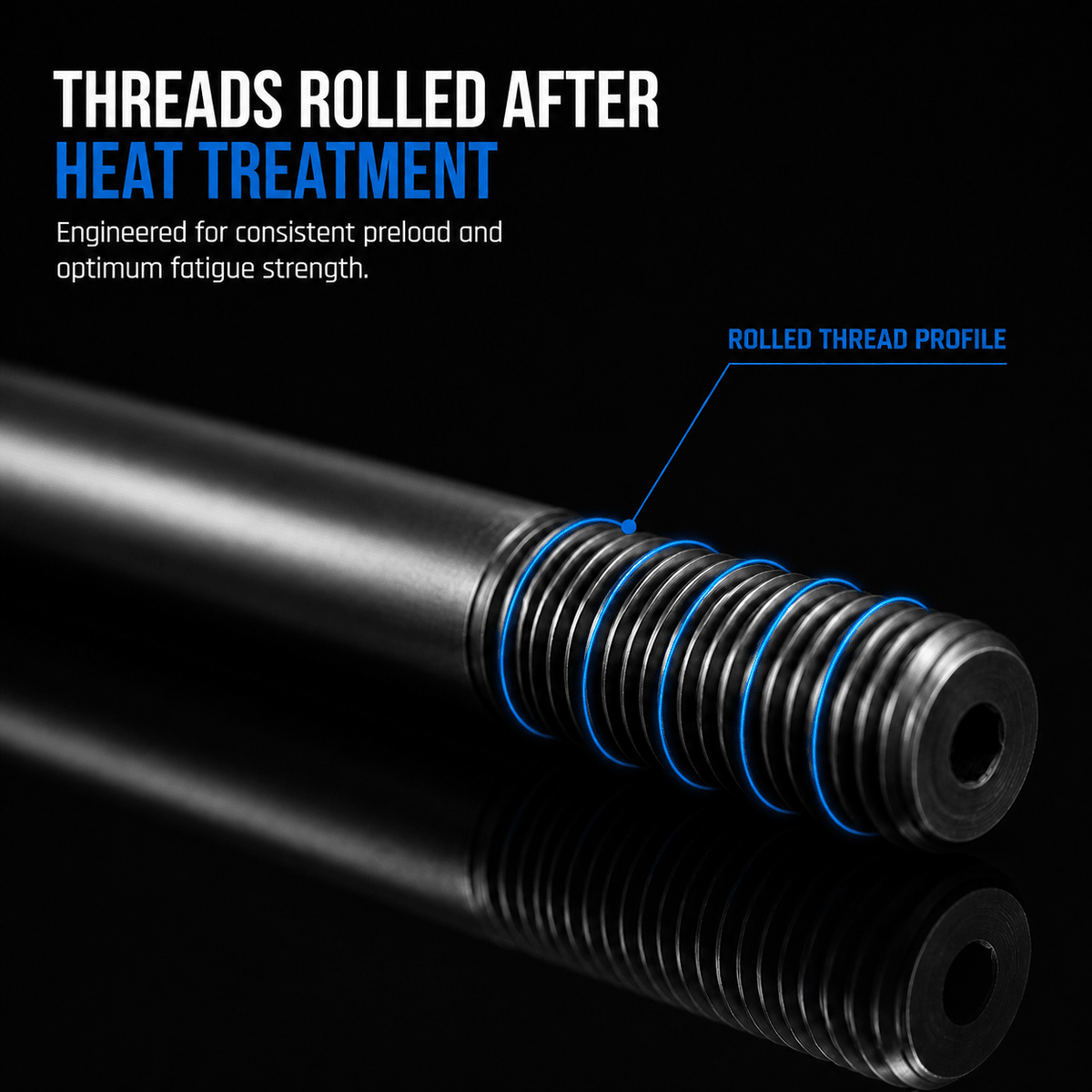

Close-up of stud threads rolled after heat treatment for consistent preload and fatigue strength

A secure starting point.

Head studs help secure the cylinder head and gasket to the engine block. Follow the installation diagram for your application when positioning the studs.

Designed to be worked with.

Broached ends provide an Allen-key interface for fitting and removing the studs. Use the tool size specified in your kit’s installation instructions.

Built through a defined process.

XOTIC 7200 alloy studs feature threads rolled after heat treatment. Follow your kit’s instructions for lubrication, tightening sequence, and torque requirements.

XOTIC 7200 / Material comparison

Tensile & yield strength.

Two measures of strength. Explore the comparison for XOTIC 7200 alloy and 8740 chromoly steel.

Tensile strength

The maximum tensile stress a material withstands before failure.

Original tensile comparison diagram: XOTIC 7200, 232K PSI, in solid blue; 8740 chromoly steel, 222K PSI, in dashed graphite.
Existing material comparison illustration. Not a product-specific kit test.
XOTIC 7200 series

232K PSI

8740 chromoly steel

222K PSI

Yield strength

The stress at which a material begins to deform permanently.

Original yield comparison diagram: XOTIC 7200, 212K PSI, in solid blue; 8740 chromoly steel, 201K PSI, in dashed graphite.
Existing material comparison illustration. Not a product-specific kit test.
XOTIC 7200 series

212K PSI

8740 chromoly steel

201K PSI

The original comparison identifies an M14 × 237 specimen.

Original method note: ISO 6892-1:2016 or ASTM A370 / ASTM E8/E8M in the US.

Material specification

220–240K PSI

Strength specification

The published tensile-strength range for XOTIC 7200 head studs is 220,000–240,000 psi. Tensile strength describes the material under tension; it is not an installed clamping-force or horsepower rating.

View the test documentation

The linked ATRONA report records a 240,000 psi tensile result for a submitted stud tested in May 2020. This result applies to the submitted sample.

View source report

See the details

Behind the product.

Watch the video selected for this product.

XOTIC videoWatch on YouTube

05 / Understand the connection

How a head stud works.

The stud stays in tension. The head and gasket stay clamped. See how the parts work together.

Inside the connection
A head stud in cross-section A blue stud threads into the engine block and passes through a clearance hole in the cylinder head. A nut and washer sit above the head. Tightening the nut stretches the stud slightly and compresses the head and gasket against the block. White arrows show tension in the stud; blue arrows show the clamping forces on the joint. 3 4 2 1 5 6
Stud tension · Joint compression
  1. Nut
  2. Washer
  3. Cylinder head
  4. Head gasket
  5. Engine block
  6. Head stud
Stud tensionClamping force

Simplified cutaway. Movement is exaggerated for clarity. Follow the instructions supplied for your specific kit, including preparation, lubrication, tightening sequence and torque values.

View installation instructions

Before you begin

A good install starts here.

Review the instructions and any application-specific requirements before you begin.

Download installation manual

Before you order

Will this fit my vehicle?

Use the vehicle checker above to confirm your exact application. For an engine swap or unusual setup, contact XOTIC before ordering.

Are tools and assembly lubricant included?

Yes. See the What’s included list above for the tools and assembly lubricant supplied with this kit. Follow the kit’s instructions for preparation and any additional equipment required for the complete job.

How does the warranty work?

Review the warranty policy for coverage, eligibility, and claim requirements.
