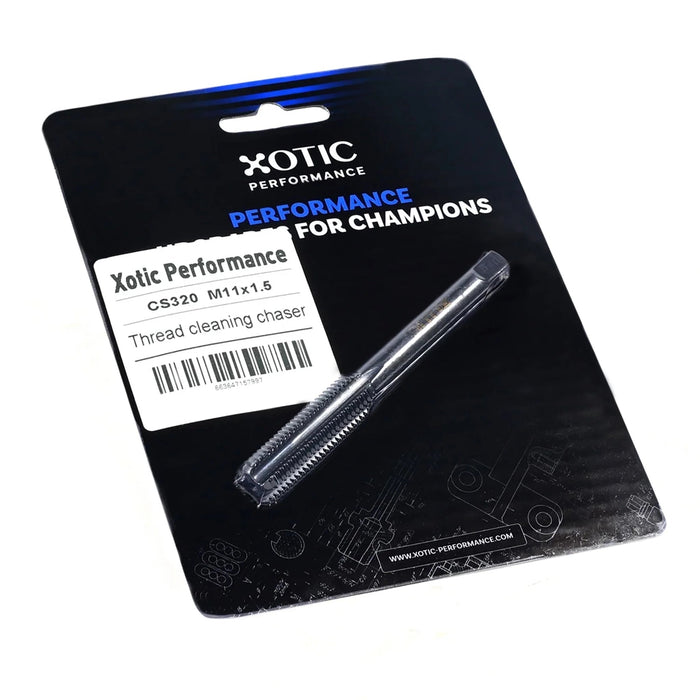

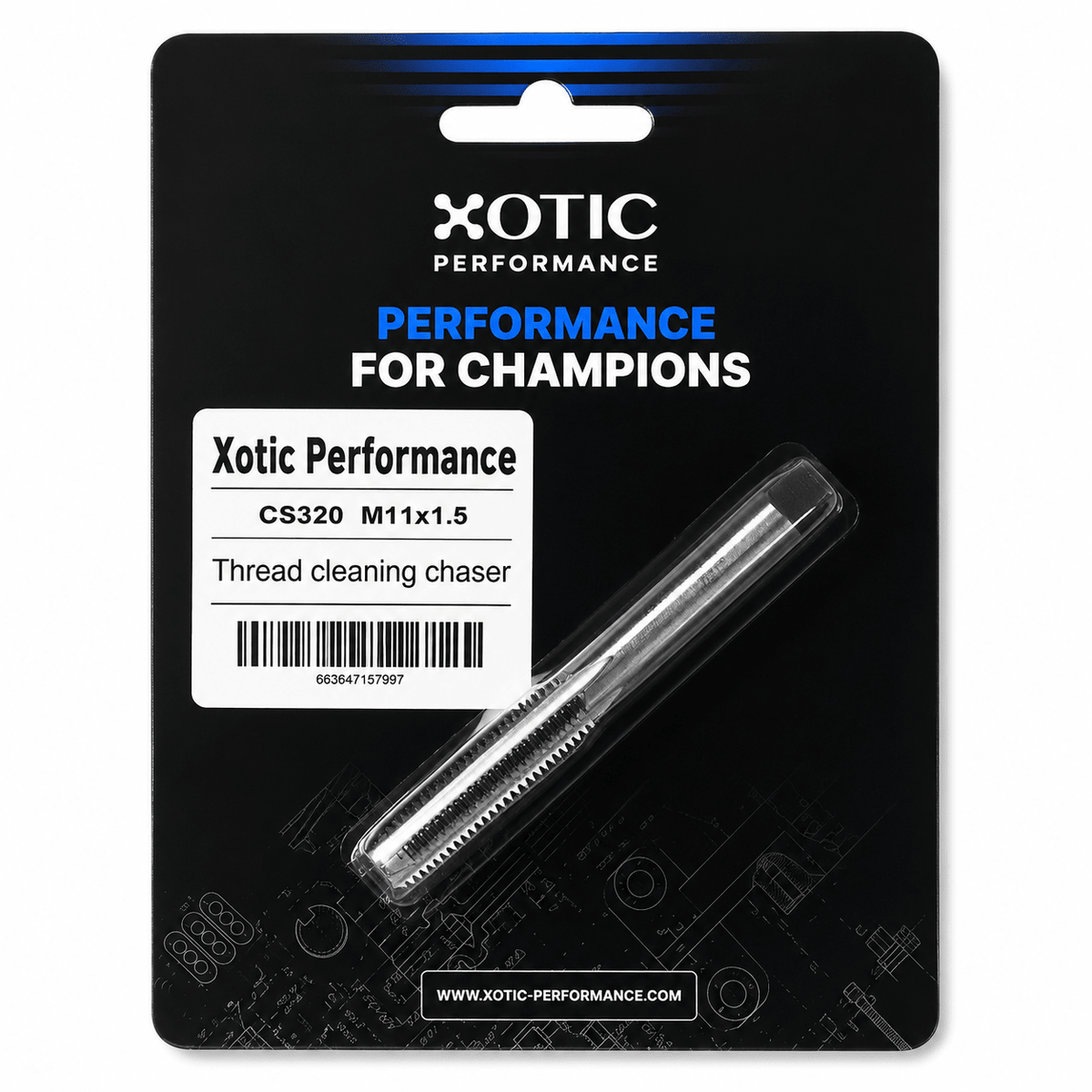

M11 x 1.50 x 3.84" Cleaning & Restoration Thread Chaser Tool CS320

Thread Chaser Tool

M11 × 1.50 · 3.84 in OAL

PART # CS320

£23.00 - £23.00
£23.00
£23.00 - £23.00
£23.00
Availability:
in stock, ready to be shipped
1-Year Limited Warranty
Free shipping is available on orders over $100 shipping to the USA or Canada.

Why drivers choose XOTIC PERFORMANCE

Clean threads. A better start.

Clean existing M11 × 1.50 internal threads before reassembly. This 4241 high-speed steel chaser helps remove debris and buildup while following the original thread. 3.84 in overall length.

Clean existing threads.

Remove debris and buildup from the matching threaded hole before installing your hardware.

Sized for the job.

M11 × 1.50 thread size; 3.84 in overall length.

1-Year Limited Warranty

Covered by XOTIC PERFORMANCE’s one-year limited warranty for tools. See the policy for coverage and terms.

Your application

Match the thread before you start.

Match the thread diameter and pitch exactly, then check the working depth and available access.

SizeM11 × 1.50 · 3.84 in OAL

For existing M11 × 1.50 threads. Metric diameters and pitches are in millimetres. Tool overall length is 3.84 in. Confirm thread diameter, pitch, required reach and access before use. Not for cutting new threads.

Need help selecting the correct thread size? Ask XOTIC

M11 x 1.50 x 3.84" Cleaning & Restoration Thread Chaser Tool

Inside the box

Know exactly what arrives.

Included components for this product.

QtyComponent
1 M11 × 1.50 thread chaser
11 mm nominal diameter; 1.50 mm pitch. 3.84 in overall length.

Engineering details

Made to follow the existing thread.

A threaded working end with longitudinal flutes clears debris from matching internal threads. The smooth shank provides reach, while the drive flats let you turn the tool by hand with a suitable manual driver.

Cleaning existing internal threads A flat-sided drive turns a long-shank thread chaser in an existing female-threaded hole. The working nose has longitudinal debris flutes. Existing threads continue below the tool tip. Drive flatsThreaded noseExisting threadsDebris flute
Simplified section through an existing threaded hole. Match the chaser to the thread size and pitch; these tools do not cut new threads.

4241 high-speed steel.

Made from 4241 high-speed steel for thread-cleaning work.

Longitudinal debris flutes.

Straight flutes interrupt the threaded working section to help clear loosened debris. Back the tool out regularly to clean it.

Controlled manual use.

Start by hand, keep the tool aligned and turn it slowly with a suitable manual driver. Stop and check if it binds. Do not use a drill or impact.

Before you begin

Clean threads. Careful technique.

Read the thread-chaser instructions before use. Choose the correct size and keep the tool aligned with the existing threads.

Download tool instructions

Before you order

How do I choose the correct size?

Match both metric diameter and pitch in millimetres to the existing hole. This tool is M11 × 1.50. Also check access and the required working depth.

Can this tool cut new threads?

No. It is intended to clean and restore existing matching threads, not create new threads. It does not replace missing thread material.

Can I use a drill or impact driver?

No. The instructions specify controlled manual use. Start the tool by hand and do not force it if resistance increases.

Are a handle, socket or lubricant included?

No. This product includes only the thread chaser listed above. A suitable manual driver and any lubricant are supplied separately.

What warranty is included?

This tool carries a one-year limited warranty from the date of purchase, subject to XOTIC PERFORMANCE’s warranty policy.
