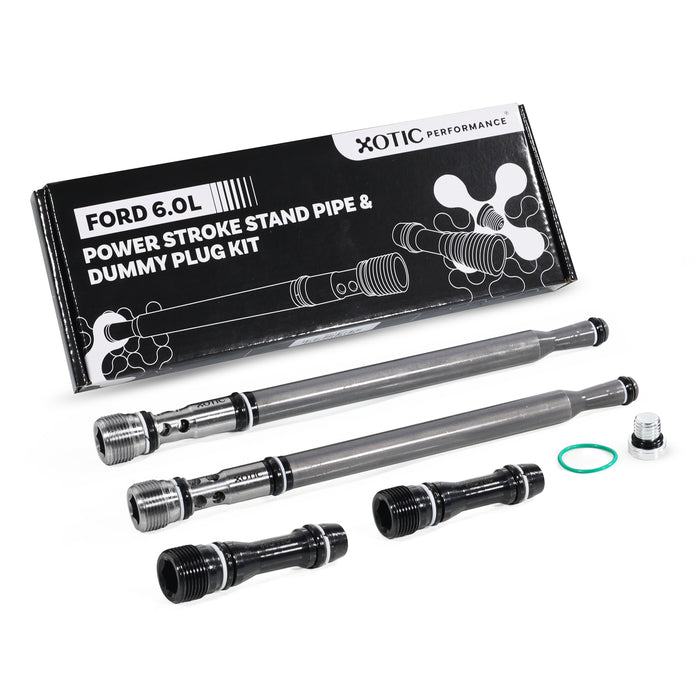

This guide covers replacement of the standpipes and dummy plugs on the 2004.5–2010 6.0L Ford Power Stroke (E-Series and F-Series, 6E7Z-9A332-B fuel supply tube) using the XOTIC PERFORMANCE™ SP100 Stand Pipe & Dummy Plug Kit. It walks through high-pressure oil (HPO) rail removal, installation torque specs, and the final checks that confirm your hard-start problem is actually fixed. Prefer a printable copy? Download the PDF manual.

Jump to videos

Why standpipes and dummy plugs cause 6.0L hard starts

The standpipes and dummy plugs seal the high-pressure oil rail on each cylinder head. When their O-rings and nylon seals degrade, the HPO system bleeds off pressure — producing the classic 6.0L symptoms: long cranks, hard hot starts, and ICP-related trouble codes. Replacing both standpipes and dummy plugs with updated seals restores oil pressure to the injectors and is one of the most common repairs on these engines.

Required tools and prep

• Socket set: 8mm, 10mm, possibly 12mm hex for early standpipes
• 12mm Allen (for standpipe removal/installation)
• Torque wrench
• T30 Torx bit (for oil rail bolts)
• O-ring pick, clean motor oil, shop rags
• Battery disconnect tool or wrench

How to replace 6.0L Power Stroke standpipes and dummy plugs

Step 1: Prepare the engine

1. Disconnect both negative battery cables.
2. Passenger/right side: remove the glow plug control module and its bracket, then remove the hot-side intercooler pipe.
3. Remove the valve covers (12mm bolts) and any components obstructing access to the high-pressure oil (HPO) rail. The dummy plug is located at the front of the head; the standpipe is at the rear.
4. Driver/left side: remove the mounting bolts for the coolant reservoir and push it aside without disconnecting hoses. Remove the air filter housing and intake ducts, covering the turbo inlet with a clean shop towel to keep debris out.

Step 2: Remove the HPO rail, standpipe, and lower dummy plug

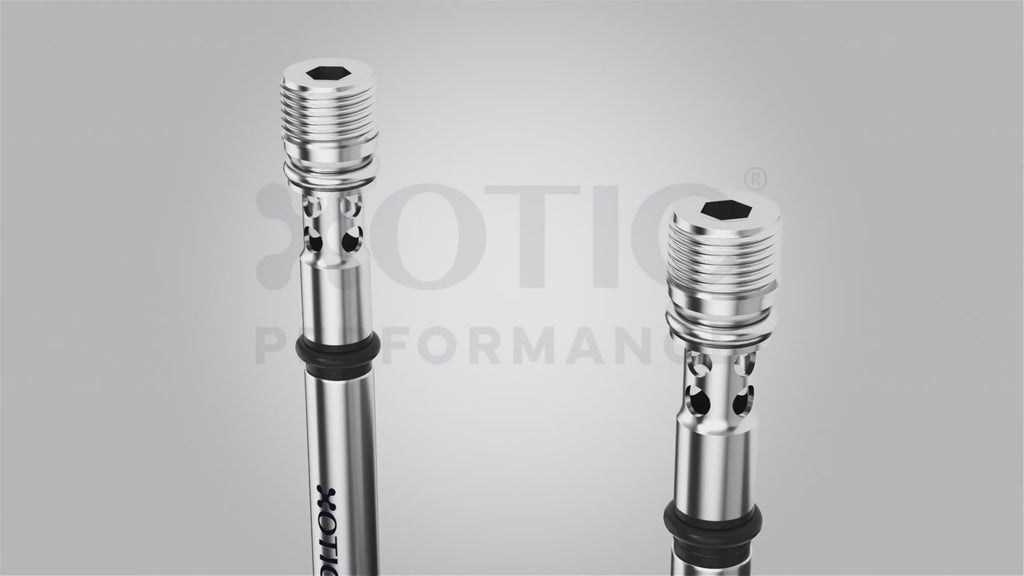

1. Before removing the rail bolts, loosen the standpipe and dummy plug using a 12mm hex wrench or key.
2. Remove the standpipe upper part and the dummy plug.
3. Remove the HPO rail bolts with a T30 Torx bit and lift the rail straight up. For best performance, drain the old oil from the HPO rail as part of the maintenance process.
4. With the rail out, check the ball tubes — they should move freely, but not be excessively loose. If a ball tube is leaking or damaged, the HPO rail ball tube socket & repair kit (OR100) handles that job while you're in there.

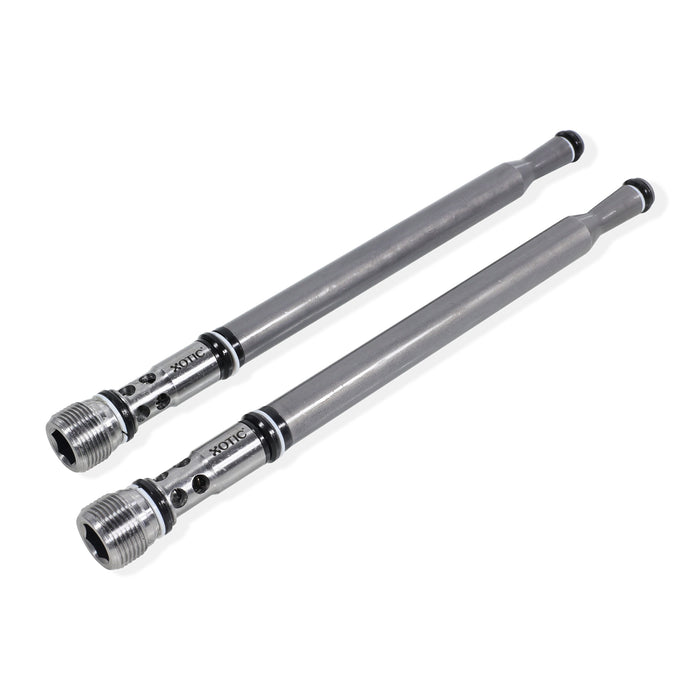

5. Using angled needle-nose pliers, remove the rear lower portion of the standpipe from the engine. The pipe may be lodged in very tightly; pulling and wiggling may be required.

Step 3: Install the new standpipes and dummy plugs

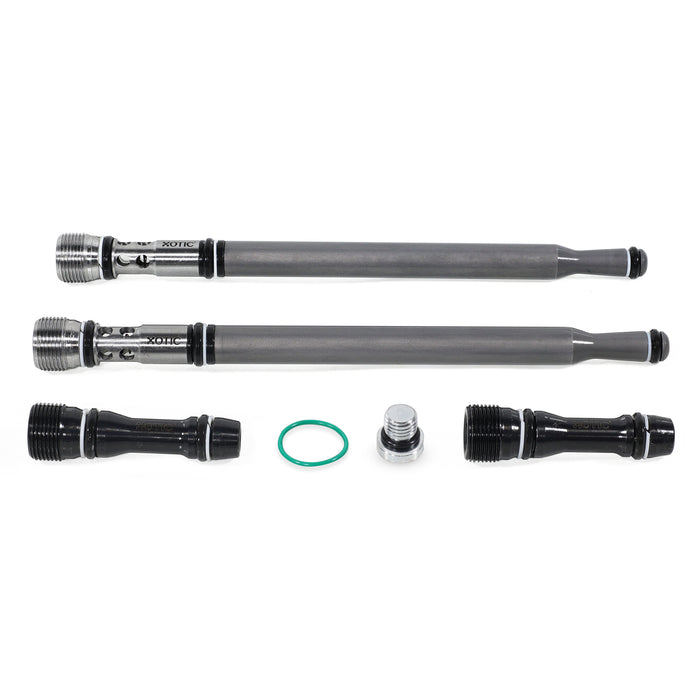

1. Release the upper portion of the standpipe (interconnector) and detach it from the standpipes.

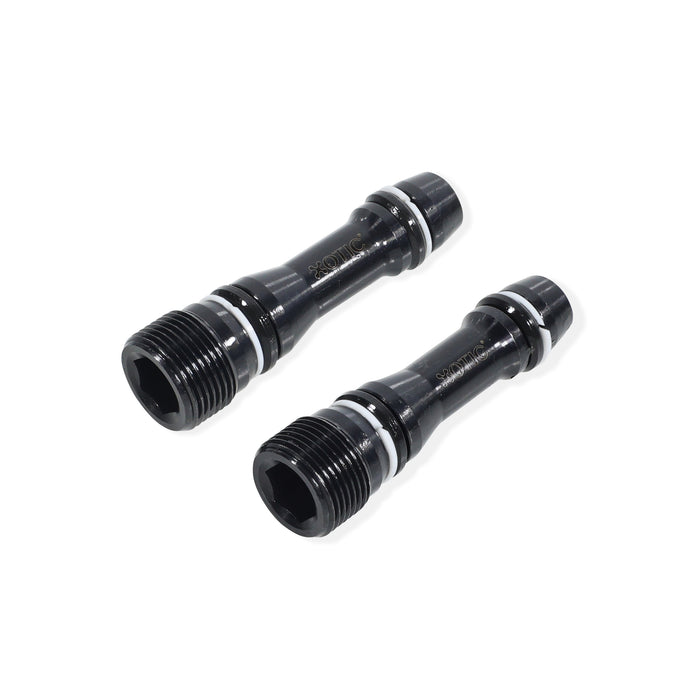

2. Lightly lubricate the new XOTIC PERFORMANCE™ O-rings on the lower part of the standpipe with clean engine oil or a suitable lubricating compound such as Sil-Glyde or assembly goo.
3. Guide the lower part of the standpipe into place. Push in until it stands on its own and you can feel it engage in the hole.
4. Carefully install the HPO rail — you should feel the ball tubes drop into place.
5. Install the rail bolts and torque to spec, starting in the center and working outward.
6. Install the interconnector to the rear standpipe. Push in until the threads engage, tighten by hand, then torque to spec.

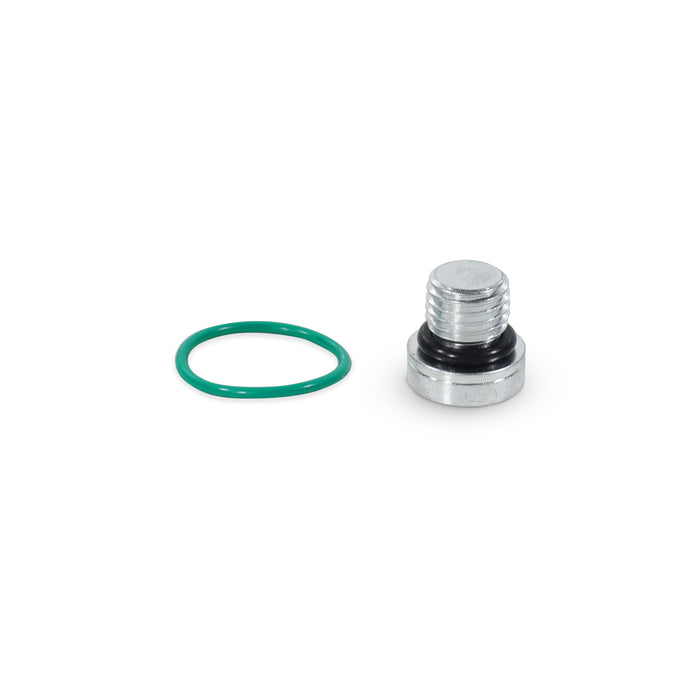

7. Install the dummy plugs and torque to spec.

Torque specs

Step 4: Reinstall valve covers and accessories

1. Reinstall the valve covers, glow plug control module, and piping.
2. Start and operate the vehicle. When HPO rails are drained of oil, extended crank time is required to start the engine. If the problem persists after installation and initial run time, removal and inspection for leaks will be necessary.

Troubleshooting hard starts and ICP codes after installation

Monitor ICP/HPOP codes — hard starts or codes P2290, P2291, and P0201–P0208 may indicate oil leaks or a faulty installation. If hard starts persist after clearing codes, checking for internal leaks may be required.

Tips from experience

• The passenger side is tight — more patience and care needed.
• Keep everything ultra-clean — any contamination in the HPO system can cause major injector issues.
• Use only high-quality oil to lube O-rings and nipple surfaces.
• Be very careful during installation to ensure no damage is caused to the O-rings or nylon seals.
• For real-time visual guidance covering disassembly, inspection, lubrication, and torque sequence, watch our full step-by-step installation video — linked via the QR code in the printed manual or on our YouTube channel.

Doing the whole high-pressure oil system?

Long cranks usually have more than one culprit. The Complete High-Pressure Oil System Repair Bundle pairs this standpipe kit with the ball tube repair kit and IPR components to fix the three most common 6.0L HPO failure points in one job.
